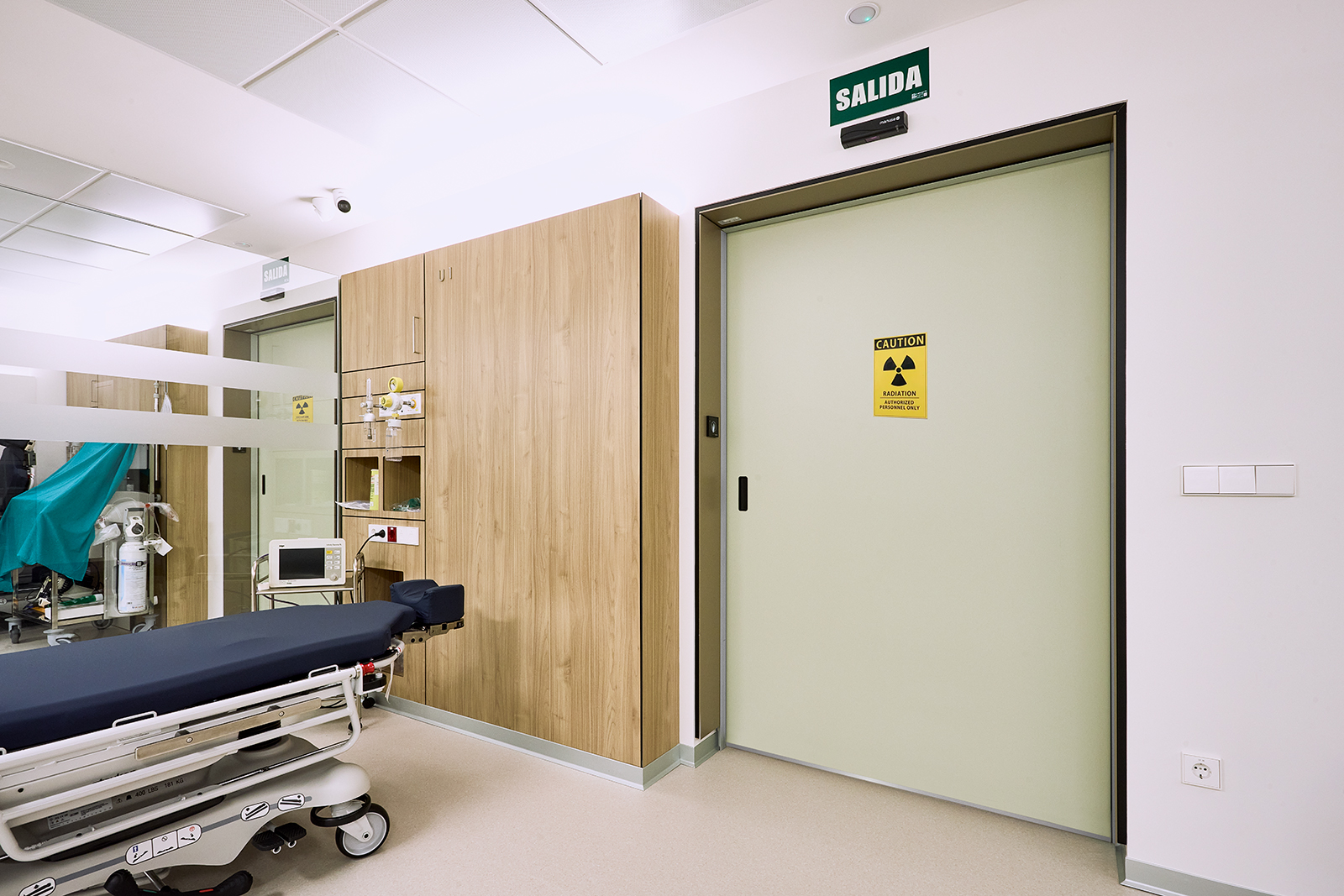

Comprehensive safety in hospitals with the new EI lead-lined fire-rated airtight door

In hospitals and healthcare centres, safety and control of the environment are essential to protect people and facilities. Areas such as operating theatres, ICUs, radiology departments and laboratories require high levels of protection, while the rest of the building must offer a comfortable environment that promotes patient recovery and facilitates the work of professionals. In this context, access points play a key role and, in order to meet the highest demands, Manusa presents the new EI lead-lined fire-rated airtight door, an innovative solution designed for areas that require the strictest security measures.

This model combines maximum airtightness and certified fire resistance, and guarantees protection against ionising radiation, offering comprehensive safety for critical environments. Below, we highlight the five main reasons for choosing this door.

1. Radiological shielding

Designed for diagnostic imaging areas or laboratories, the door incorporates a lead layer of up to 3 millimetres that guarantees effective protection against ionising radiation. This shielding is integrated into the door leaf without affecting its airtightness, fire resistance or sound insulation, offering a safe and functional solution.

2. Maximum airtightness for controlled environments

The model is part of the range of airtight doors that Manusa has developed for the healthcare sector. Its perimeter seal, together with its fast and silent opening and closing cycles, guarantees the highest air permeability classification (Class D according to UNE-EN 12207:2017). This airtightness maintains stable pressure and temperature conditions in operating theatres, laboratories and ICUs, prevents cross-contamination and facilitates disinfection thanks to its smooth, screw-free surfaces.

3. Firewall capability

The leaf incorporates a high-pressure laminate (HPL) coating and a frame with intumescent material that expands when exposed to fire, maximising insulation in the event of a fire. This design provides flame, smoke and gas containment for at least 60 minutes (EI 60 rating). The model complies with the most demanding fire resistance and smoke control standards (UNE EN 1634-1:2016+A1:2018 and UNE EN 13501-2:2023), ensuring structural integrity and tightness in the event of a fire.

4. Intelligent integration

The new model is compatible with our Visio+ Hermetic operator. This solution incorporates IoT technology and enables the door to connect to the Internet for real-time remote access management and control. The operator allows for this monitoring while maintaining the sealing and security provided by the new door.

5. Customisation

In addition to its advanced functionality, Manusa offers facilities to integrate its solutions into the aesthetics and requirements of each project. Customisation options include windows, panelling in different colours and the incorporation of optional equipment such as push buttons, sensors or UPS systems to adapt its use to each space.

In short, the new EI lead-lined fire-rated airtight door is the technical solution that balances maximum active and passive safety, sealing, and intelligent management in your most demanding projects.

If you need to integrate this model into your facility or would like more information, please contact us.
