Description

Sectional doors are the best solution for establishments in the industrial or logistics sector. Silent and safe, these doors offer effective insulation with a maximum-security sealed closing system that insulates the inside space. Their optimised design offers a comfortable door with a reduced visual impact in the space where it is integrated. We offer different, customised opening systems that make it possible to perfectly integrate the door into architectural spaces.

Features

Opening Vertical opening with the capability to be automatized
Closure Maximum security air leakage closure
Insulation All the hinged joints, lateral, upper and lower to achieve a greater thermal and air flow insulation.
Customizable Personalized design according to operating mode
Resistant Continuous reinforcement plates.
Structure Sandwich panel 40 and 75 mm thick with high density expanded polyurethane core, phosphate wire twist springs ans galvanized steel guides and fittings.
Certificate Manufacturing materials approved by the EU.

Technical specifications

  • Standard headroom maximum dimensions: 6000 x 6000 mm with a weight of up to 350Kg
  • High headroom maximum dimensions: 6000 x 6000 mm with a weight of up to 350Kg
  • Vertical headroom maximum dimensions: 6000 x 6000 mm with a weight of up to 350Kg
  • Low headroom maximum dimensions: 6000 x 6000 mm with a weight of up to 350Kg
  • Outdoors use
  • Grooved and embossed panels
  • Wind resistance class 3
  • Opening speed: 0,3 m/s

Optional equipment

  • Lifting systems: standard lift, high lift, vertical lift and with low headroom
  • Option of placing windows in the panels
  • Different types of finishes for the door panel
  • Possibility of finishes in RAL and in imitation materials such as steel or wood.Consult options.

Colours

RAL 1015
RAL 3000
RAL 5010
RAL 6005
RAL 7011
RAL 7016
RAL 7022
RAL 8014
RAL 9006
RAL 9007
RAL 9010
RAL 8017

Typologies

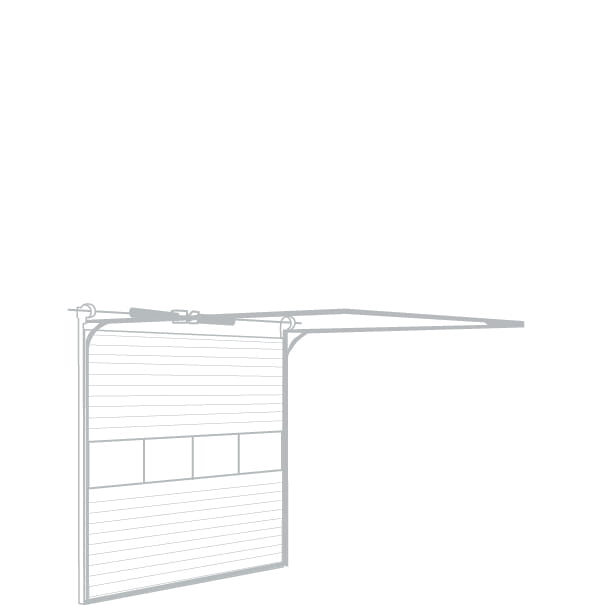

Standard lintel

Standard lintel

Suitable for almost any situation.

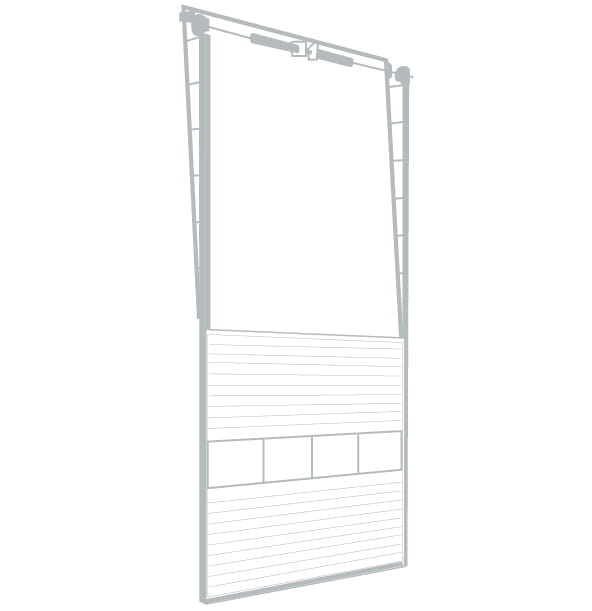

Vertical lintel

Vertical lintel

Ideal solution when there is sufficient height in the lintel to avoid invading the interior area.

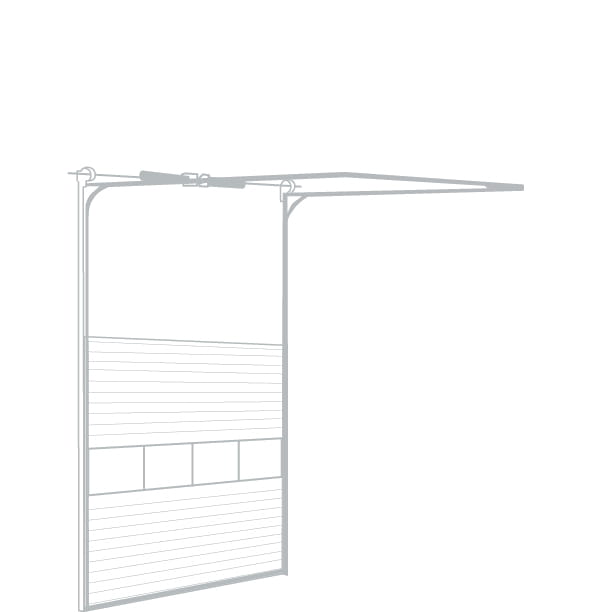

High-lift lintel

High-lift lintel

Perfect for installation scenarios with additional height, as it creates a larger work area.

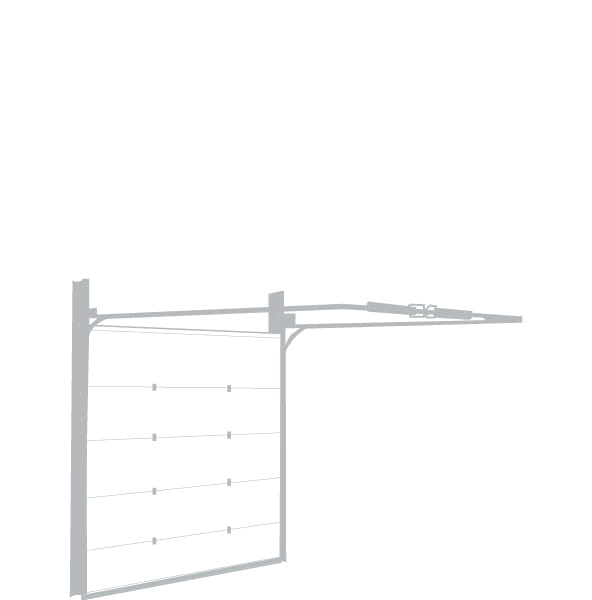

Reduced lintel

Reduced lintel

Flexible and solid industrial door solution with minimal lintel area.

Sectors

Our sectional doors are a broad solution that, combining a wide variety of designs and materials that guarantee the effectiveness of the doors, fit perfectly into spaces from residential complexes to industrial warehouses and logistics centres.

Regulation

  • Obligatory European rule EN-13241-1
  • 98/37/EEC concerning machines’ security
  • 89/336/EEC concerning electromagnetic compatibility
  • 73/23/EEC concerning low voltage
  • 89/106/EEC concerning building products

Downloads

No downloads available
Go to downloads
BIMobject
Catalogs
Certificates
Drawings
Specification Text
Technical Leaflet
User Manuals

Frequently asked questions about sectional doors

Types of sectional doors

Industrial sectional doors are classified according to the different lifting systems, which can be adapted to any requirement. The standard lintel adapts to most spaces, the vertical lintel is better when there is sufficient height in the lintel to avoid invading the interior area, the high lintel for installation scenarios with additional height, and the reduced lintel when minimum lintel space is available.

Silent and safe, the doors offer effective insulation with a maximum-security sealed closing system that insulates the inside space. Their optimised design offers a comfortable door with a reduced visual impact in the space where it is integrated.

This type of industrial door offers a solid and flexible solution when there is minimum lintel space. It features a springs system assembled on the back part, and it can be installed with a minimum space of 200 mm.
